TP-Link Omada SG3452XMPP Managed Switch

main product photo
Vergelijken
€ 1.078,11 € 891,00
Productomschrijving

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

  • 4× 10 Gbps SFP+ slots
  • 8× Gigabit 802.af/at/bt PoE++ poorten (Maximaal 90 W PoE-budget per poort)
  • 40× Gigabit 802.3af/at PoE+ poorten (Maximaal 30 W budget per poort)
  • 750 W totaal PoE-budget*
  • Gecentraliseerd cloudbeheer via het web of de Omada app†
  • Standalone beheer via web, CLI, SNMP, en RMON
  • Static Routing helpt intern verkeer te routeren voor hogere efficiëntie
  • VLAN, ACL, QoS, IGMP Snooping, OAM, en DDM
  • ERPS ondersteunt snelle bescherming en herstel in een ringtopologie
  • Duurzaam metalen behuizing en rack-mountbare ontwerp

Wij helpen je graag bij het kiezen van de juiste producten of bij al je vragen!
Product eigenschappen
  • Hogekracht-apparaten van stroom voorzien met Gigabit PoE++ poorten
  • Bouw eenvoudig een volledig 10G Multi-gigabit netwerk
  • Software Defined Networking (SDN) met Cloud-toegang
  • Meerdere toepassingsscenario’s
 Technische specificaties

Functionaliteit van de Hardware

Interface • 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+)
• 4× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Ventilator Aantal 3
Physical Security Lock √
Uitgangsvermogen 100-240 V AC~50/60 Hz
PoE Ports (RJ45) • Standard: 802.3at/af/bt compliant
• PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port)
• PoE+ Ports: Ports 9~48 (up to 30 W PoE Output per Port)
• Power Budget: 750 W*
Afmetingen ( B x D x H ) 17.3×13.0×1.7 in (440×330×44 mm)
Montage Rack Mountable
Max Power Consumption • 913.4 W (110V/60Hz) (with 750 W PD connected)
Max Heat Dissipation • 3114.69 BTU/hr (110 V/60 Hz) (with 750 W PD connected)

Prestatie

Schakelvermogen 176 Gbps
Packet Forwarding Tarief 130.9 Mpps
MAC Address Table 16 K
Packet Buffer Geheugen 12 Mbit
Jumbo Frame 9 KB

Functionaliteit van de Software

Kwaliteit van de Dienst (QoS) • 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
• Bandwidth Control: Port/Flow-based Rating Limiting
• Smoother Performance
• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Kenmerken • 128 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 48 IPv4/IPv6 Static Routes
• Static ARP: 128 static entries
• 512 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
L2 Multicast • Supports 1000 (IPv4, IPv6) IGMP groups
• IGMP Snooping
• IGMP Authentication
• Multicast VLAN Registration (MVR)
• MLD Snooping
• Multicast Filtering: 256 profiles and 16 entries per profile
Geavanceerde Functies • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
ISP Features • L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS
• 802.3ah Ethernet Link OAM
• DDM
• sFlow
VLAN • VLAN Group: Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 30 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN: VLAN Mapping, VLAN Replace
• Voice VLAN
LijstToegangsbeheer • Time-based ACL
• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL applies to Port/VLAN
Veiligheid • IP-MAC-Port Binding - 512 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding - 512 Entries
• DHCPv6 Snooping
• ND Detection
• ND Snooping
• IPv6 Source Guard: 100 Entries
• DoS Defend
• DHCP Filter
• Static/Dynamic Port Security: Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
• 802.1X: Port-based authentication, Mac-base authentication, VLAN Assignment, MAB, Guest VLAN, Radius authentication and accountability support
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control
IPv6 • IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs • MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

Beheer

Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
• Trap/Inform
• RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

Overige

Certificatie CE, FCC, RoHS

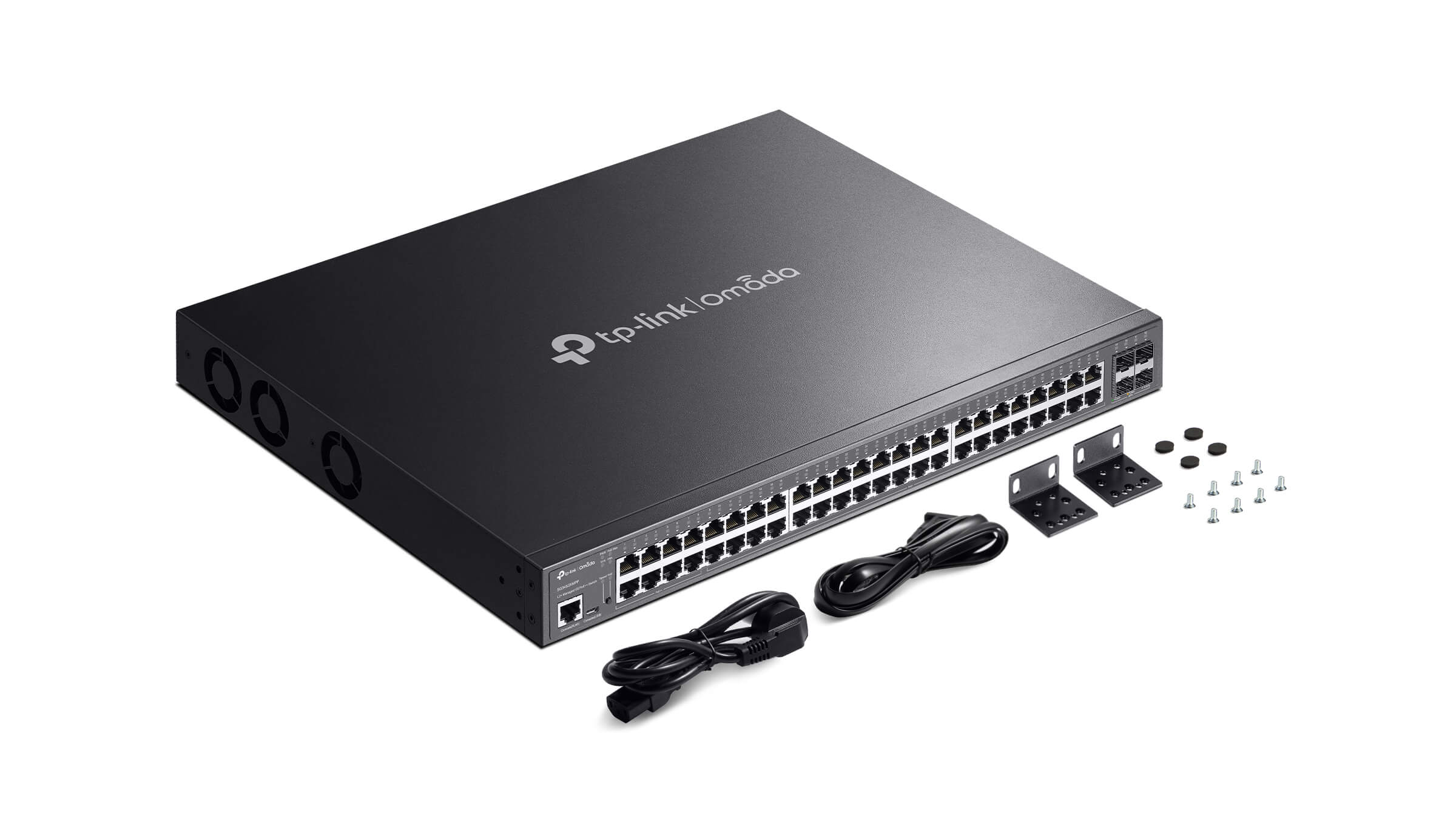

Pakketinhoud • SG3452XMPP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
Systeemvereisten Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Omgeving • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
